Name: HH series Fully automatic sheet fed paper bag making machine
Brand: HONGQIANG
SKU: 00032
Rating: 4.9 (66 reviews)

Main Parameters

Model		HY-220HH	HY-350HH	HY-450HH
Paper bag width		130-250mm（5.11-9.84inch）	180-350mm（7.08-13.78inch）	220-450mm（8.66-17.72inch）
Bottom width/ Gusset		60-130mm（2.36-5.12inch）	70-170mm（2.75-6.69inch）	80-220mm（3.14-8.66inch）
Feed paper width		490-770mm（19.29-30.31inch）	600-1040mm（23.62-40.94inch）	600-1400mm（23.62-55.18inch）
Feed paper length		260-450mm（10.23-17.71inch）	340-600mm（13.38-23.62inch）	350-600mm（12.78-23.62 inch）
Paper weight		100-190g/m²	120-200g/m²	120-200g/m²
Bag mouth fold width		40-50mm/1.57-1.96in ch	40-60/1.57-2.36inch	40-60/1.57-2.36inch
Handle patching length		114mm/4.48inch	152mm/5.98inch	190.5mm/7.5inch
Handle patching width		40-45mm/1.57-1.77inch	40-45mm/1.57-1.77inch	40-45mm/1.57-1.77inch
Patch paper thickness		120-140g/m²	120-150g/m²	120-180g/m²
Patch paper roll diameter		φ1000mm/39.37inch	φ1000mm/39.37inch	φ1000mm/39.37inch
Patch paper roll width		80-90mm/3.15-3.54inch	80-110mm/3.15-4.33inch	80-90mm/3.15-3.54inch
	Twisted rope handle diamete	φ4-6mm/0.16-0.24inch	φ4-6mm0.16-0.24inch	φ4-6mm0.16-0.24inch
	Twisted rope handle height	160-180mm/6.29-7.08inch	125mm/4.92inch	125mm/4.92inch
	Twisted rope handle pitch	60mm/2.36inch	75mm/2.92inch	95mm/3.74inch
	Twisted rope handle height		φ12-15mm/0.47-0.59inch	φ12-15/0.47-0.59inch
	Flat paper handle diameter		100mm/3.93inch	190mm/3.54inch
	Flat paper handle pitch		75mm/2.92inch	95mm/3.74inch
	Patch paper thickness		100-120g/m²	100-120g/m²
Glue type		Water glue(tube gluing with additional hot melt glue system)
Working speed		60-100pcs/min	60-100pcs/min	60-100pcs/min
Total power		26KW 380V 50HZ 4wires 3Phases	28KW 380V 50HZ 4wires 3Phases	30KW 380V 50HZ 4wires 3Phases
Machine weight		18T	20T	22T
Dimension(LWH)		1400050003100mm	1500055003100mm	1600060003100mm
NOTE:Working speed varies depending on paper quality,paper thickness,printing effect with or without laminate PP film,glue quality,papersize climate and workship environment.

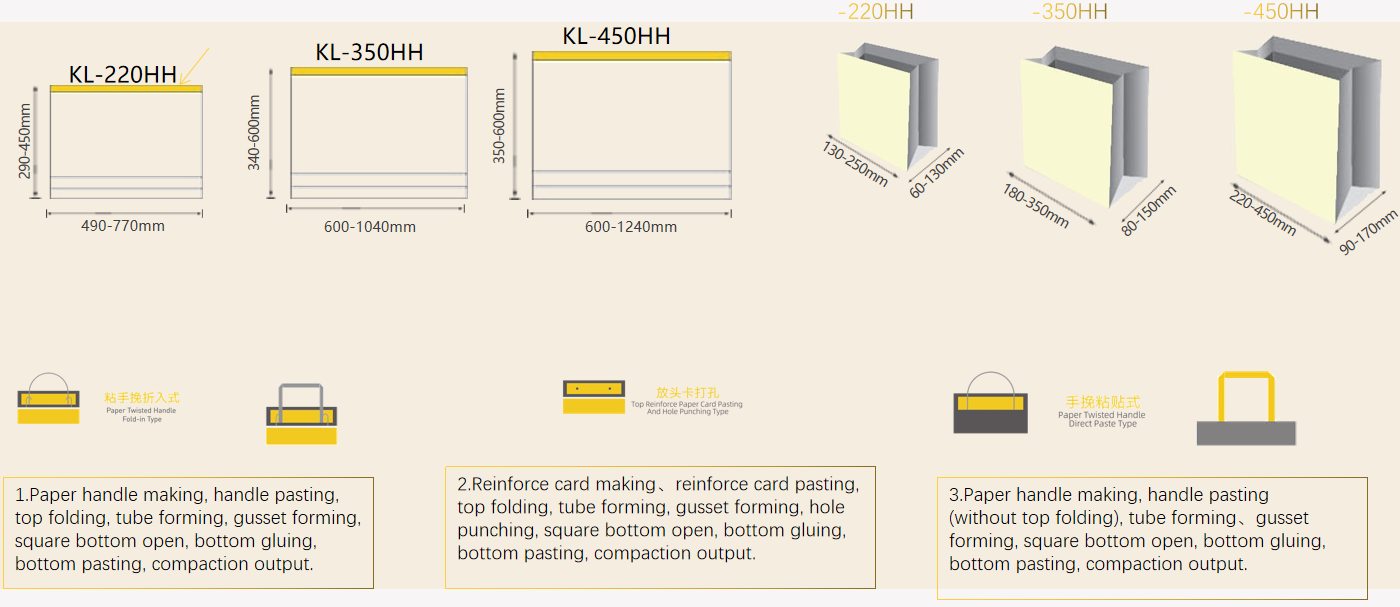

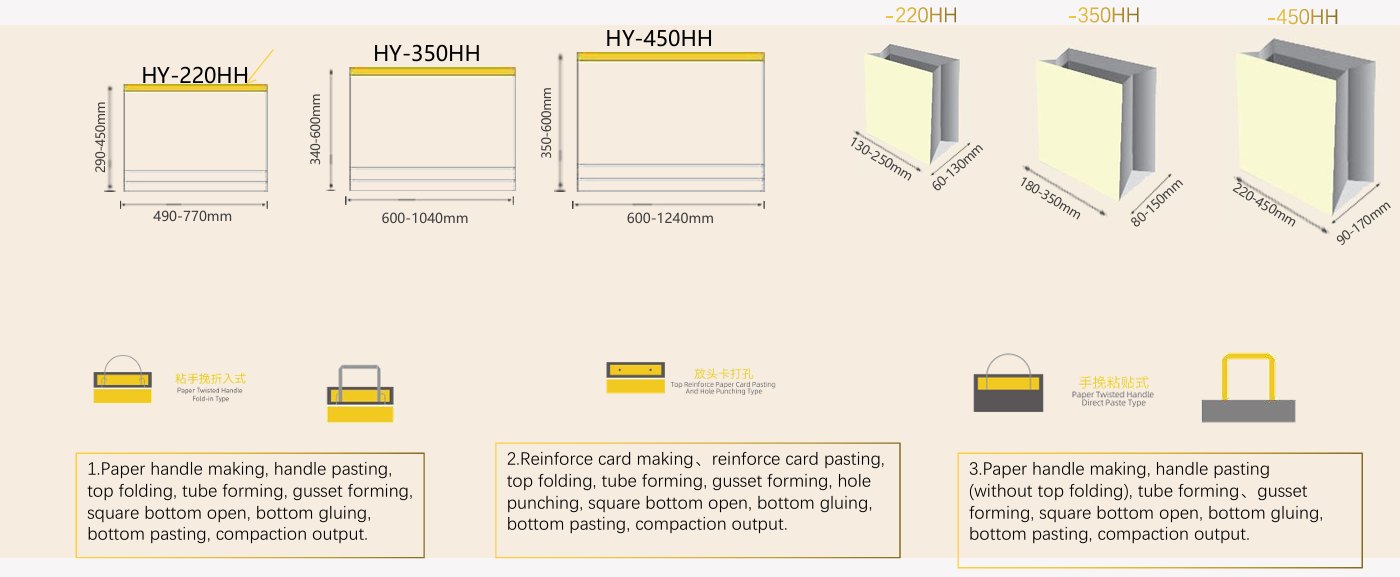

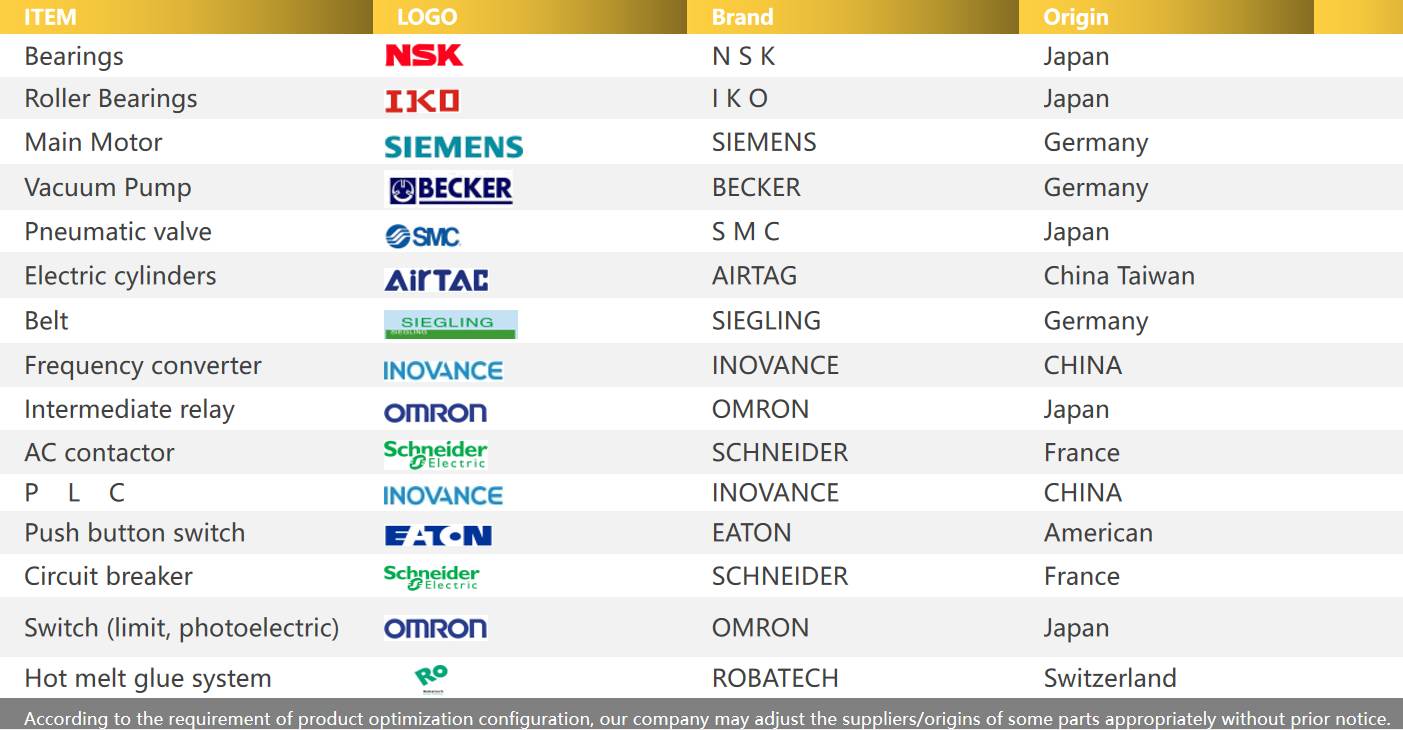

Configuration List

ITEM	LOGO	Brand	Origin
Bearings		N S K	Japan
Roller Bearings		I K O	Japan
Main Motor		SIEMENS	Germany
Vacuum Pump		BECKER	Germany
Pneumatic valve		S M C	Japan
Electric cylinders		AIRTAG	China Taiwan
Belt		SIEGLING	Germany
Frequency converter		INOVANCE	CHINA
Intermediate relay		OMRON	Japan
AC contactor		SCHNEIDER	France
P L C		INOVANCE	CHINA
Push button switch		EATON	American
Circuit breaker		SCHNEIDER	France
Switch (limit, photoelectric)		OMRON	Japan
Hot melt glue system		ROBATECH	Switzerland
According to the requirement of product optimization configuration, our company may adjust the suppliers/origins of some parts appropriately without prior notice.

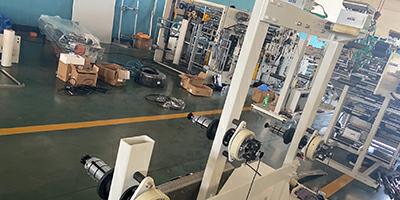

Handle Making Unit

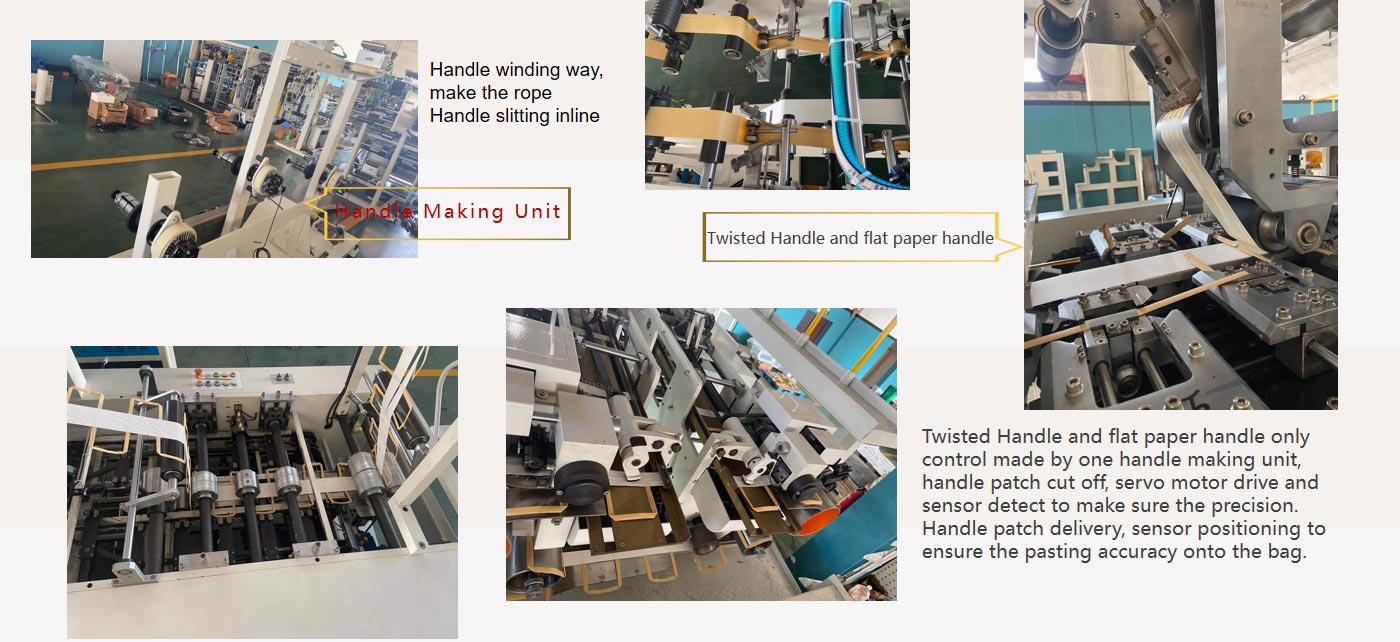

Handle winding way, make the rope Handle slitting inline

Twisted Handle and flat paper handle

Twisted Handle and flat paper handle only control made by one handle making unit, handle patch cut off, servo motor drive and sensor detect to make sure the precision. Handle patch delivery, sensor positioning to ensure the pasting accuracy onto the bag.

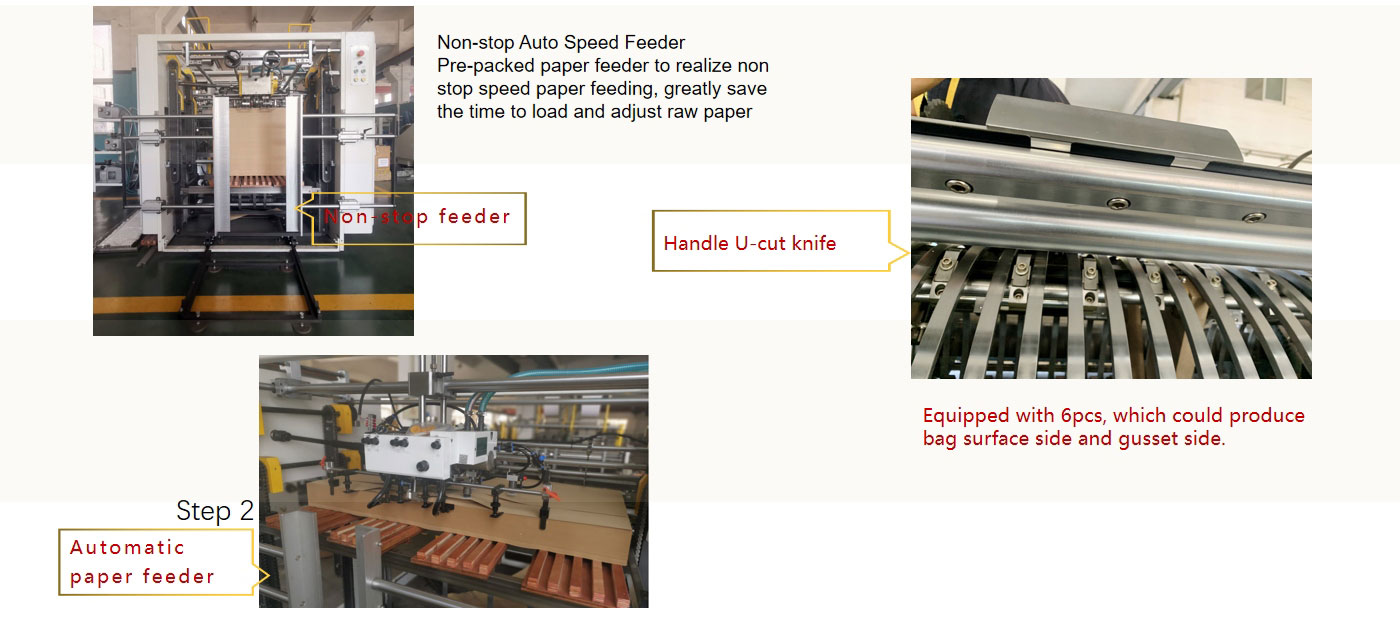

Non-stop feeder

Non-stop Auto Speed Feeder Pre-packed paper feeder to realize non stop speed paper feeding, greatly save the time to load and adjust raw paper

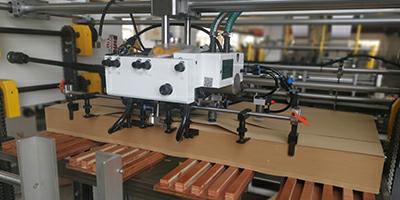

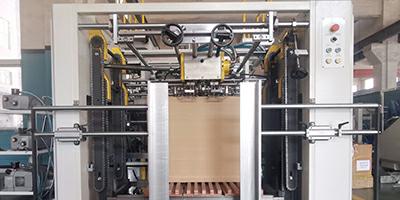

Automatic paper feeder

Automatic paper feeder,fully automatic paper feeding improves efficiency.

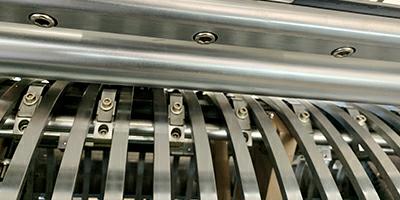

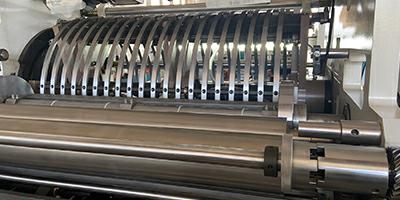

Handle U-cut knife

Equipped with 6pcs, which could produce bag surface side and gusset side.

Top folding unit

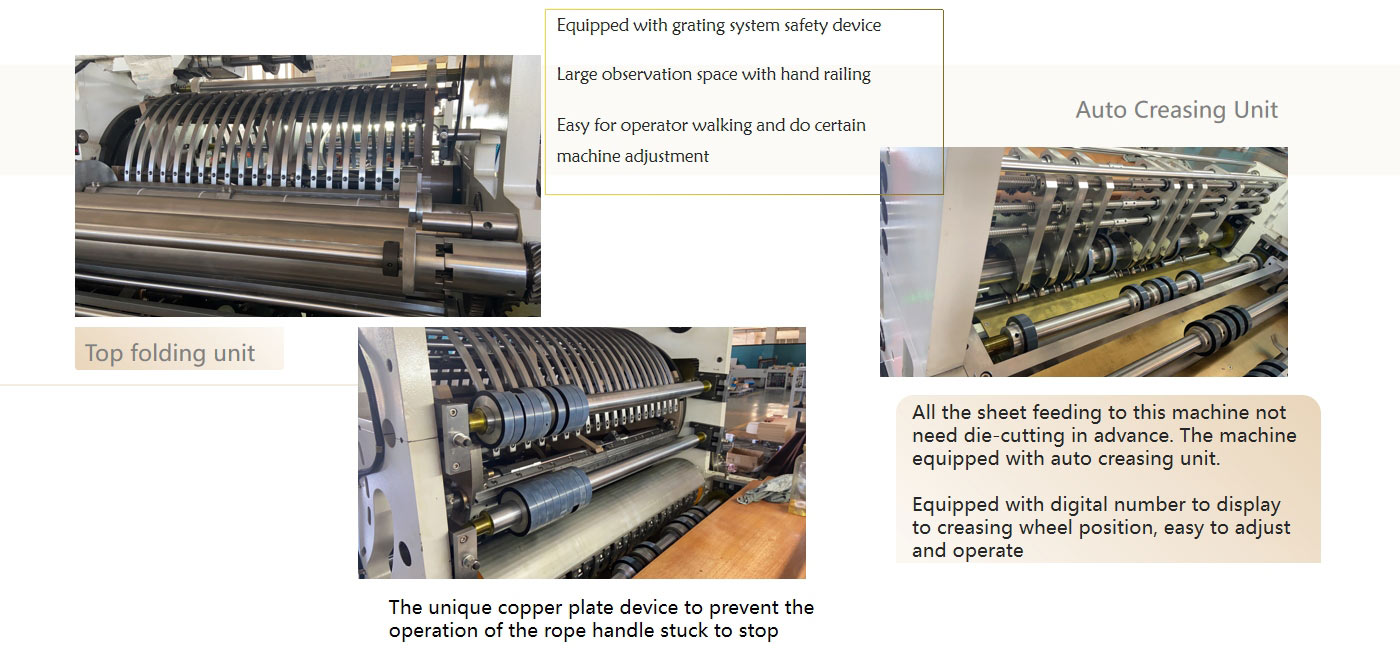

Equipped with grating system safety device Large observation space with hand railing Easy for operator walking and do certain machine adjustment

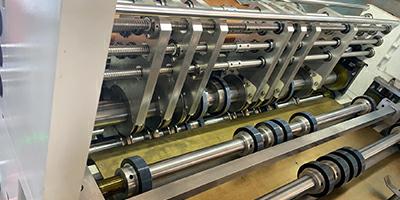

Auto Creasing Unit

All the sheet feeding to this machine not need die-cutting in advance. The machine equipped with auto creasing unit. Equipped with digital number to display to creasing wheel position, easy to adjust and operate

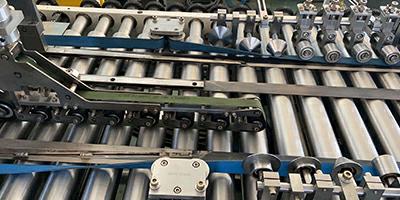

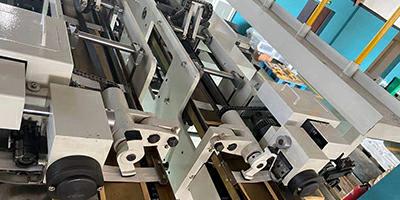

Gusset Folding Unit

Adopts copper blade M shape folding gusset making system and special for big bottom size

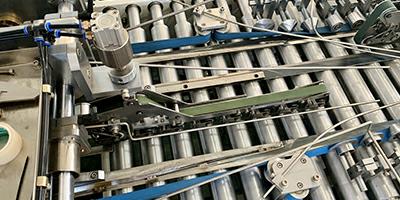

Tube side pasting

The pasting side could choose bag surface side (big side) or gusset side (small side). Which could fulfill different kinds of customer bag orders.

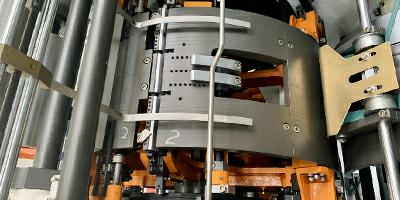

Bottom openning

Name of patent: Bottom opening device Adopts water glue for bottom gluing Delta grating system Emergency stop button Equipped with hole punching unit Diameter 5mm Diameter 6mm. The hole distance is 80mm and 120mm. If special size could be customized before taking the order.

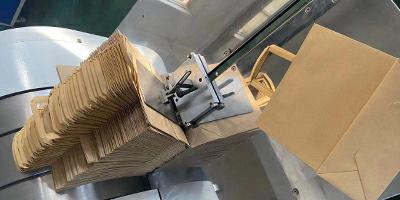

Paper Bag Collection

Paper Bag Collection with Automatic Counting and control Screen

Model

Description

HY-220HH

HY-350HH

HY-450HH

Total Amount:

Price validity:20 days from the date of this quotation.

PaymentTerm

T/T30% deposit of the contract total amount will be paid and T/T70% balance will be paid before container loading.

DeliveryTime

Ship out by sea within 60 working days after receiving the buyer's payment.

LoadingPort

NINGBO PORT, CHINA

Packaging

Packd on wooden case with oil inhibitor to prevent corrosion and wrapped with foam plastic membrane.

Quality

Ensure the quality of the machine and guarantee the machine is inspect and has never been used.

Installation

The seller provides one technician free for installation and training 30 days, From departure date the buyer pays for the technician's all domestic and international traveling, air tickets, food and hotel. During installation and test run, buyer shall make reasonable efforts to assist the technician, provide sufficient human resources,labor and tools as well as necessary accessories for debugging and training. Please have your specified operator to maintain scrupulous records and learn from our engineer in the installation process, an experience and professional translatoris necessary. The standard charge of $200 per day beyond the agreed installation days.

Warranty

One years guarantee for the machine after the machine leave the seller's factory, the seller shall send the spare parts along with the machine, during the warranty period, the seller maintain and change the spare parts for free(except for the instrument damage caused by human factors), the buyer is responsible for all miscellaneous charges (all costs of shipping),provide photo basis to determine the true quality of exchange with the same item. The original fault location, the original fault parts damaged, be free of any charges. After the warrant yperiod, the buyer need to pay for spareparts and courier shipping cost.

Service

If the seller can't send engineer as schedule be cause of COVID-19 situation or other uncontrollablepolicy, online services will be provided.
