Name: T-S series Automatic sheet fed paper bag making machine
Brand: HONGQIANG
SKU: 00034
Rating: 4.9 (67 reviews)

Main Parameters

Model	HY-220T-S	HY-350T-S	HY-450T-S
Paper bag width	110-240mm（4.33-9.44inch）	180-350mm（7.08-13.78inch）	200-450mm（7.87-17.72inch）
Bottom width	60-120mm（2.36-4.75inch）	70-160mm（2.75-6.29inch）	90-170mm（3.54-6.69inch）
Paper sheet width	380-700mm（14.96-27.56inch）	530-1040mm（23.62-40.94inch）	600-1240mm（23.62-48.81inch）
Paper sheet length	240-440mm（9.44-17.32inch）	290-600mm（11.41-20.86inch）	320-600mm（12.25-23.62 inch）
Paper weight	a.Kraft paper:100-200g/m² b.Art paper+PP laminating:120-230g/m² c.White cardboard+PP laminating:150-230g/m² d.Grey Paperboard+PP laminating:150-250g/m²	a.Kraft paper:120-200g/m² b.Art paper+PP laminating:120-230g/m² c.White cardboard+PP laminating:150-250g/m² d.Grey Paperboard+PP laminating:150-300g/m²
Paper weight	Recommend that paper thickness above 200gsm die cutting before operation
Top card thickness	200-450g/m²	200-450g/m²	200-450g/m²
Top card width	90-220mm/3.54-8.66inch	160-330mm	180-430mm
Top card length	20-50mm/0.78-1.96inch	20-50mm	20-50mm
Punching hole distance	60、100mm	80、120mm	100、140mm
Hole diameter	Φ4，Φ5，Φ6	Φ4，Φ5，Φ6	Φ4，Φ5，Φ6
Hole diameter	Punching hole distance can be customized according to actual needs,the above is the standard hole distance
Working speed	50-85pieces/min	40-75pieces/min	40-75pieces/min
Glue type	Water-based adhesive + hot melt adhesive system	Water-based adhesive + hot melt adhesive system	Water-based adhesive + hot melt adhesive system
Total power	25KW 380V 50HZ	27KW 380V 50HZ	27KW 380V 50HZ
Machine weight	13T	14T	15T
Machine dimension	1600018002200mm	1600019001800mm	1600020001800mm
NOTE:Working speed varies depending on paper quality,paper thickness,printing effect with or without laminate PP film,glue quality,paper size climate and work shop environment.

Configuration List

ITEM	LOGO	Brand	Origin
Bearings		N S K	Japan
Roller Bearings		I K O	Japan
Main Motor		SIEMENS	Germany
Vacuum Pump		BECKER	Germany
Pneumatic valve		S M C	Japan
Electric cylinders		AIRTAG	China Taiwan
Belt		SIEGLING	Germany
Frequency converter		INOVANCE	CHINA
Intermediate relay		OMRON	Japan
AC contactor		SCHNEIDER	France
P L C		INOVANCE	CHINA
Push button switch		EATON	American
Circuit breaker		SCHNEIDER	France
Switch (limit, photoelectric)		OMRON	Japan
Hot melt glue system		ROBATECH	Switzerland
According to the requirement of product optimization configuration, our company may adjust the suppliers/origins of some parts appropriately without prior notice.

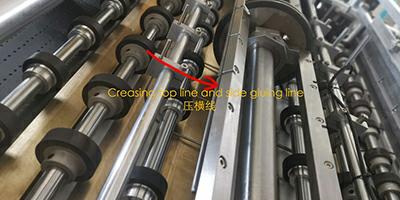

Creasing top line and side gluing

The length of the top card is controlled by servo motor can be freely adjusted, completely process from the card cutting, card suction and card pasting etc. Precise and efficient, save labor.

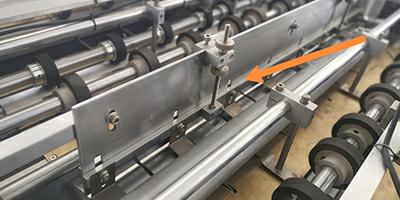

Top folding

Name of patent: Fold the bag mouth device The top folding structure, folding the edge at the bag mouth adopt the lower roller with suction device, the paper is fixed by the lower suction before folded, the running paper will not be shifted and misplaced, provides a perfect and efficient production solution for running coated art paper, kraft paper and other low-gram weight paper.

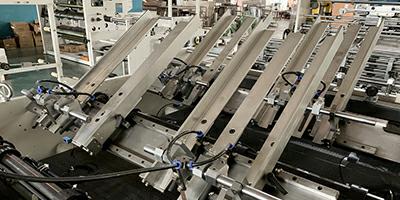

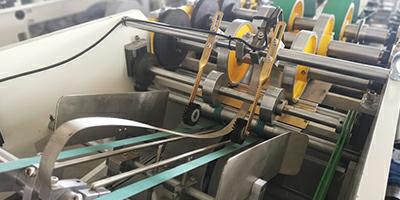

Tube forming

Name of patent: Accordion bag tube forming device The inserting type side gluing for tube forming part can form the bag into a tube neatly and in place after top card pasted and folded with mechanical differential structure, the socket can be fine-tuned during the running process without stopping.

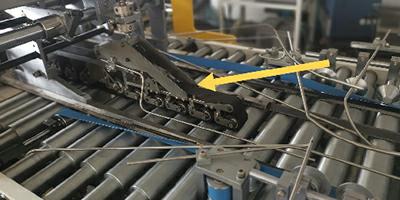

Bag turning

Name of patent: A synchronous Motion of bag overturing device The turning structure of our paper bag machine is more conducive to the uninterrupted conveying of the formed tubes of coated art paper and Kraft paper.

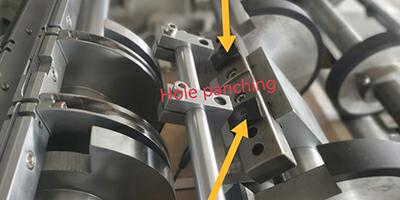

Hole panching

Name of patent: Handle holes punching device The hole punching device will automatically remove the paper foam after the machine finishes hole punching.

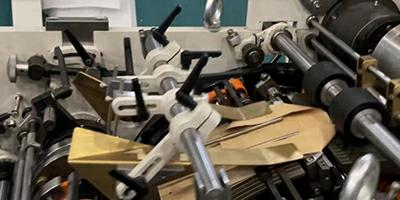

Bottom opening

Name of patent: Bottom opening device

Model

Description

HY-220T-S

HY-350T-S

HY-450T-S

Total Amount:

Price validity:20 days from the date of this quotation.

PaymentTerm

T/T30% deposit of the contract total amount will be paid and T/T70% balance will be paid before container loading.

DeliveryTime

Ship out by sea within 60 working days after receiving the buyer's payment.

LoadingPort

NINGBO PORT, CHINA

Packaging

Packd on wooden case with oil inhibitor to prevent corrosion and wrapped with foam plastic membrane.

Quality

Ensure the quality of the machine and guarantee the machine is inspect and has never been used.

Installation

The seller provides one technician free for installation and training 30 days, From departure date the buyer pays for the technician's all domestic and international traveling, air tickets, food and hotel. During installation and test run, buyer shall make reasonable efforts to assist the technician, provide sufficient human resources,labor and tools as well as necessary accessories for debugging and training. Please have your specified operator to maintain scrupulous records and learn from our engineer in the installation process, an experience and professional translatoris necessary. The standard charge of $200 per day beyond the agreed installation days.

Warranty

One years guarantee for the machine after the machine leave the seller's factory, the seller shall send the spare parts along with the machine, during the warranty period, the seller maintain and change the spare parts for free(except for the instrument damage caused by human factors), the buyer is responsible for all miscellaneous charges (all costs of shipping),provide photo basis to determine the true quality of exchange with the same item. The original fault location, the original fault parts damaged, be free of any charges. After the warrant yperiod, the buyer need to pay for spareparts and courier shipping cost.

Service

If the seller can't send engineer as schedule be cause of COVID-19 situation or other uncontrollablepolicy, online services will be provided.
