Name: H series Fully Automatic sheet fed paper bag making machine
Brand: HONGQIANG
SKU: 00031
Rating: 4.9 (66 reviews)

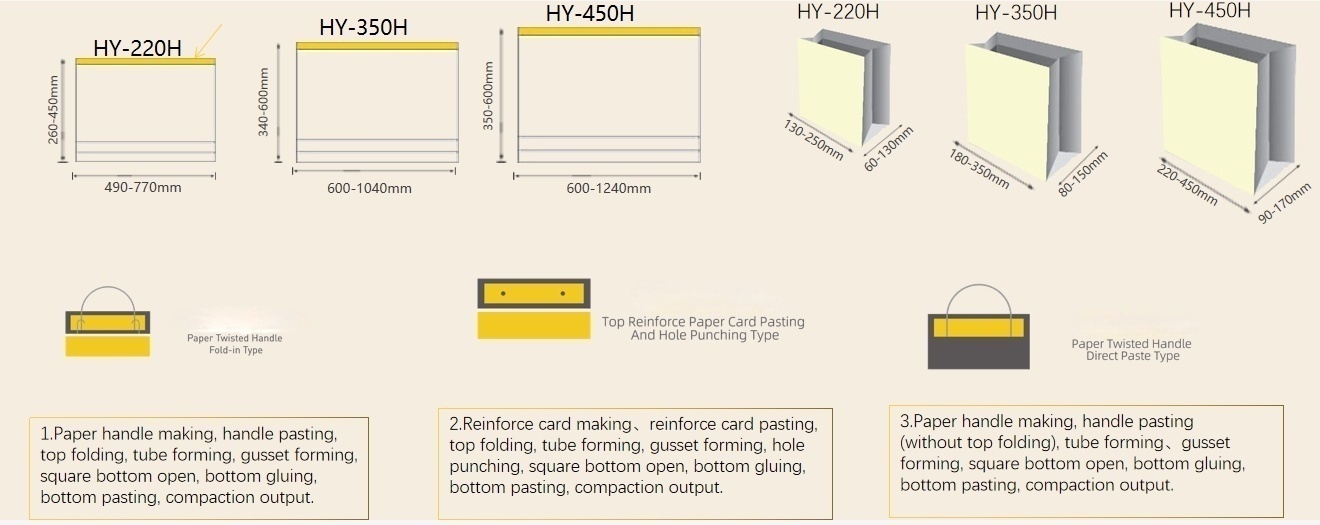

Model	HY-220H	HY-350H	HY-450H
Paper bag width	130-250mm（5.11-9.84inch）	180-350mm（7.08-13.78inch）	220-450mm（8.66-17.72inch）
Bottom width/ Gusset	60-130mm（2.36-5.12inch）	80-150mm（3.14-5.91inch）	90-170mm（3.54-6.69inch）
Feed paper width	490-770mm（19.29-30.31inch）	600-1040mm（23.62-40.94inch）	600-1240mm（23.62-48.81inch）
Feed paper length	260-450mm（10.23-17.71inch）	340-600mm（13.38-23.62inch）	350-600mm（12.78-23.62 inch）
Paper weight	100-160g/m²	120-200g/m²	120-200g/m²
Paper weight	Recommend that paper thickness above 200gsm die cutting before operation
Bag mouth fold width	40-50/1.57-1.96inch	40-60/1.57-2.36inch	40-60/1.57-2.36inch
Handle patching length	114mm/4.48inch	152mm/5.98inch	188mm/7.40inch
Handle patching width	40-45mm/1.57-1.77inch	40-45mm/1.57-1.77inch	40-45mm/1.57-1.77inch
Patch paper thickness	100-140g/m²	120-150g/m²	100-180g/m²
Patch paper roll diameter	φ1000mm	φ1000mm	φ1000mm
Patch paper roll width	80-100mm/3.15-3.94mm	80-110mm/3.15-4.33mm	80-110mm/3.15-4.33mm
Handle rope diameter	φ4-6mm	φ4-6mm	φ4-6mm
Handle rope height	160-185mm/6.29-7.28mm	170-185mm/6.69-7.28mm	170-195mm/6.29-7.28mm
Glue type	Water glue(tube gluing with additional hot melt glue system)
Working speed	40-75pcs/min	40-75pcs/min	40-75pcs/min
Total power	26KW 380V 50HZ 4wires 3Phases	28KW 380V 50HZ 4wires 3Phases	30KW 380V 50HZ 4wires 3Phases
Machine weight	18T	20T	22T
Dimension(LWH)	1400050003100mm	1500055003100mm	1600060003100mm

Configuration List

ITEM	LOGO	Brand	Origin
Bearings		N S K	Japan
Roller Bearings		I K O	Japan
Main Motor		SIEMENS	Germany
Vacuum Pump		BECKER	Germany
Pneumatic valve		S M C	Japan
Electric cylinders		AIRTAG	China Taiwan
Belt		SIEGLING	Germany
Frequency converter		INOVANCE	CHINA
Intermediate relay		OMRON	Japan
AC contactor		SCHNEIDER	France
P L C		INOVANCE	CHINA
Push button switch		EATON	American
Circuit breaker		SCHNEIDER	France
Switch (limit, photoelectric)		OMRON	Japan
Hot melt glue system		ROBATECH	Switzerland
According to the requirement of product optimization configuration, our company may adjust the suppliers/origins of some parts appropriately without prior notice.

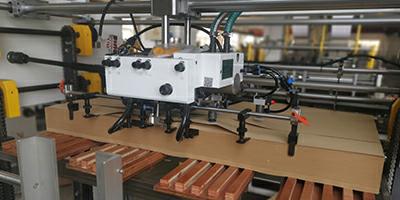

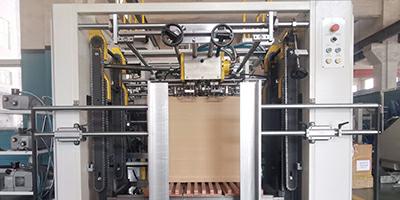

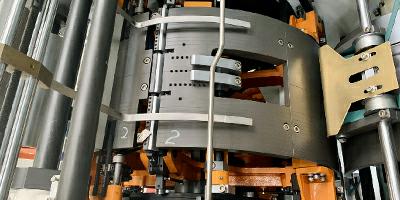

Top folding unit

Equipped with grating system safety device Large observation space with hand railing Easy for operator walking and do certain machine adjustment

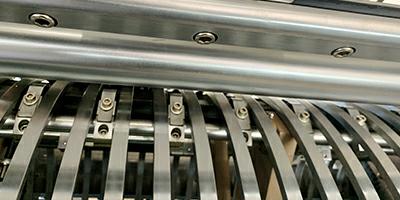

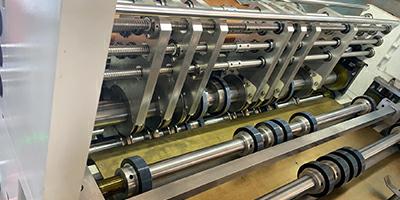

Auto Creasing Unit

All the sheet feeding to this machine not need die-cutting in advance. The machine equipped with auto creasing unit. Equipped with digital number to display to creasing wheel position, easy to adjust and operate

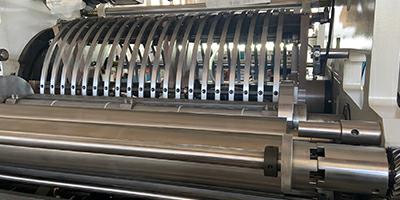

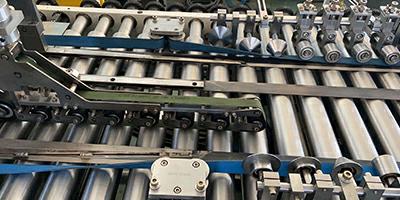

Gusset Folding Unit

Adopts copper blade M shape folding gusset making system and special for big bottom size

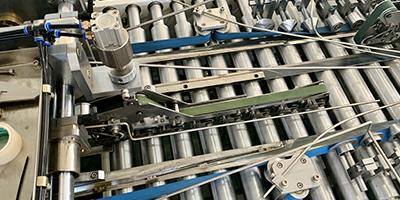

Tube side pasting

The pasting side could choose bag surface side (big side) or gusset side (small side). Which could fulfill different kinds of customer bag orders.

Bottom openning

Name of patent: Bottom openning device

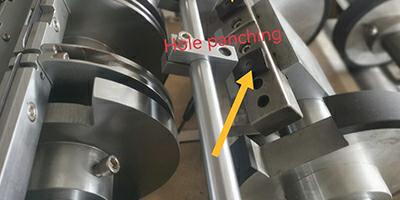

Hole panching

Name of patent: Handle holes punching device Adopts water glue for bottom gluing Delta grating system Emergency stop button Equipped with hole punching unit Diameter 5mm Diameter 6mm. The hole distance is 80mm and 120mm. If special size could be customized before taking the order.

Model

Description

Price validity:20 days from the date of this quotation.

PaymentTerm

T/T30% deposit of the contract total amount will be paid and T/T70% balance will be paid before container loading.

DeliveryTime

Ship out by sea within 60 working days after receiving the buyer's payment.

LoadingPort

NINGBO PORT, CHINA

Packaging

Packd on wooden case with oil inhibitor to prevent corrosion and wrapped with foam plastic membrane.

Quality

Ensure the quality of the machine and guarantee the machine is inspect and has never been used.

Installation

The seller provides one technician free for installation and training 30 days, From departure date the buyer pays for the technician's all domestic and international traveling, air tickets, food and hotel. During installation and test run, buyer shall make reasonable efforts to assist the technician, provide sufficient human resources,labor and tools as well as necessary accessories for debugging and training. Please have your specified operator to maintain scrupulous records and learn from our engineer in the installation process, an experience and professional translatoris necessary. The standard charge of $200 per day beyond the agreed installation days.

Warranty

One years guarantee for the machine after the machine leave the seller's factory, the seller shall send the spare parts along with the machine, during the warranty period, the seller maintain and change the spare parts for free(except for the instrument damage caused by human factors), the buyer is responsible for all miscellaneous charges (all costs of shipping),provide photo basis to determine the true quality of exchange with the same item. The original fault location, the original fault parts damaged, be free of any charges. After the warrant yperiod, the buyer need to pay for spareparts and courier shipping cost.

Service

If the seller can't send engineer as schedule be cause of COVID-19 situation or other uncontrollablepolicy, online services will be provided.
