ZNSLX-1450/1750/1950 High Precision Double Rotary Knife Sheeter Cutting Machine (2 Rolls)

350m/min Cutting Speed

80-1000GSM Cutting-Paper Reference Weight

±0.2mm Cutting Accuracy

Download

DESCRIPTION
DETAILS
RELATED MACHINERY
OTHER PRODUCT

Description

ZNSLX-1450/1750/1950 high precision double helix slitting machine (2 roll) is widely used in cardboard, kraft paper, etc.

• Optional Color Tracking

Technical Parameters

Model	ZNSLX-1450/1750/1950
Modle of Cutting Paper	Double rotary sheeter
Reference Weight of Cutting-Paper	80-1000GSM
Max. Scroll Diameter	1800mm(71")max
Max. Paper-Cutting Width	1450mm/1750mm/1950mm
Total Power	95kw/95kw/95kw
Cutting Length Range	450-1650mm/450-1650mm/450-1650mm
Cutting Accuracy	±0.2mm
Max.Speed of Cutting	400cuts/min
Max.Meter of Cutting	350m/min
The Request for Air Compressor	0.8Mpa
Weight	20000kg/21000kg/22000kg
Length × Width × Height	17500×4300×2500mm

Technical Parameters

Machine Details

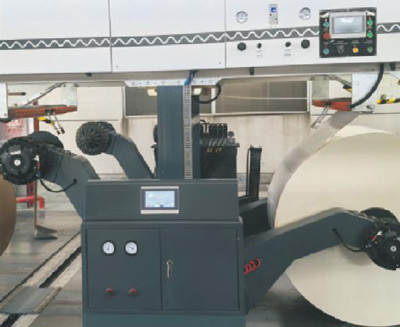

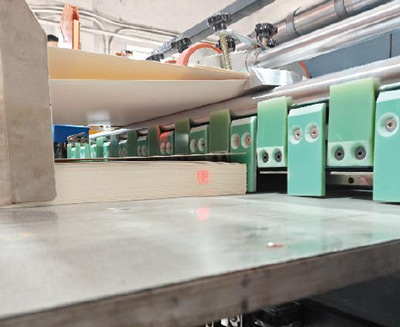

Automatic Paper Feeding	Non-Stop Paper Collection + Non-Stop Tray Change
It can feed paper without stopping the machine, which improves efficiency and reduces waste.	PLC control plus linear guide rails and pre-collecting plates are used to realize non-stop paper collection, and a motor drives the chain structure to achieve automatic tray replacement.

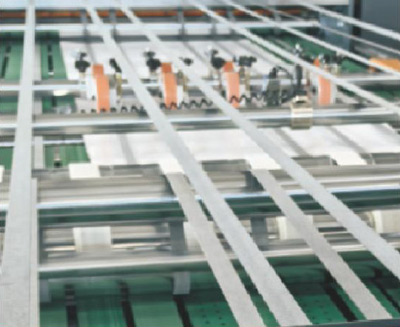

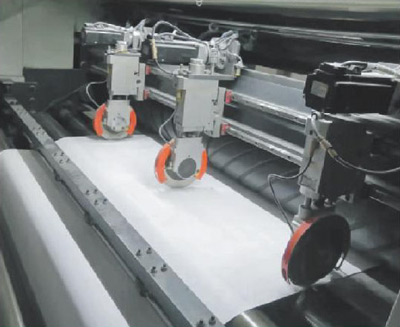

Servo Fully Automatic Slitting Section	Overlapping Part
The innovative design of the shear-type pneumatic upper slitting knife group has two-stage automatic pneumatic lowering and leaning knife actuation, precise adjustment of the overlapping depth of the upper and lower blades, the ability to adjust the blade angle according to different feeding directions, and the ability to quickly fix the knife group without tools. The shear-type slitting method has the characteristics of less powder during slitting, smooth cut surface, and high-speed slitting environment.	The power soft belt is used to synchronize the upper and lower belts, so that the paper will not scratch the surface during transportation, and the reasonable winding layout makes the paper conveying more stable.

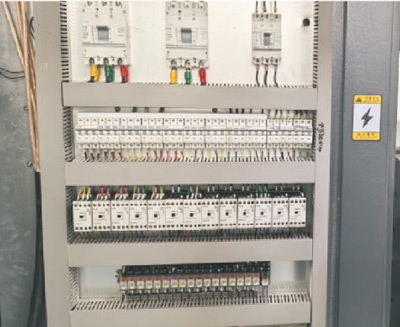

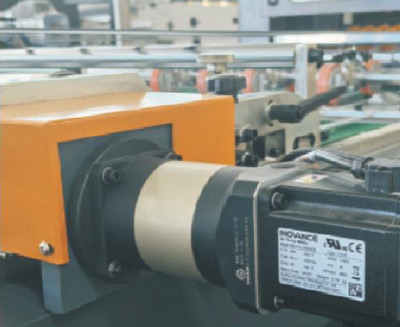

One-Key Adjustment	Electronic Control Part
All dimensions entered by the computer can be adjusted automatically, which can improve efficiency and reduce labor.	All adopt Siemens PLC imported from Germany and the domestic joint-brand brand drive control system to make the operation easier and more automated, cut off the length, quantity and total number of finished products, etc. and can be directly input on the touch screen, The actual cut length and the number of cuts can be displayed in time. The high-efficiency and energy-saving high-power domestic joint-venture brand servo-driven spiral cutter shaft, combined with the energy storage cabinet, effectively reduces the loss of electric energy, improves economy and reduces production costs.
