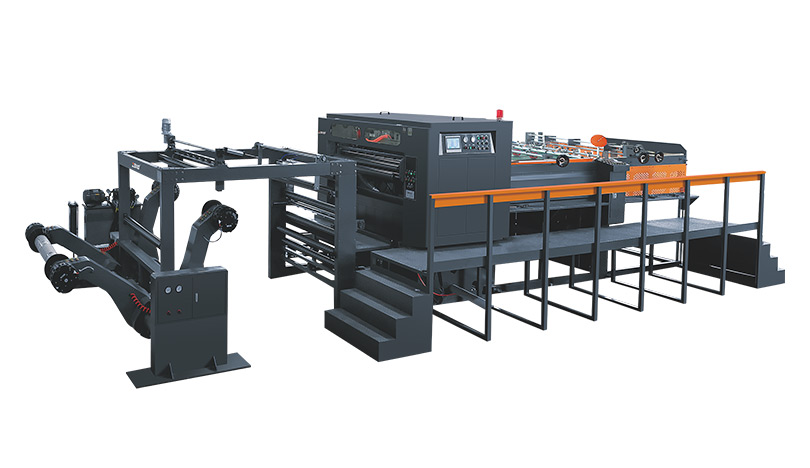

ZNSD-1400/1700/1900 Double Rotary Knife Sheeter Cutting Machine (2 Rolls / 4 Rolls)

Name: ZNSD-1400/1700/1900 Double Rotary Knife Sheeter Cutting Machine (2 Rolls / 4 Rolls)
Brand: HONGQIANG
SKU: 00088
Rating: 4.9 (94 reviews)

350m/min Cutting Speed

80-1000GSM Cutting-Paper Reference Weight

±0.2mm Cutting Accuracy

Download

DESCRIPTION
DETAILS
RELATED MACHINERY
OTHER PRODUCT

Description

ZNSD-1400/1700/1900 high precision double helix slitting machine (2 roll) is widely used in cardboard, coated paper, kraft paper, cultural paper, offset paper, glossy photo paper, gold and silver cardboard, aluminum foil paper, laser paper, tobacco and alcohol packaging paper, etc.

• Optional Color Tracking

Technical Parameters

Model	ZNSD-1400/1700/1900
Modle of Cutting Paper	Double rotary sheeter
Reference Weight of Cutting-Paper	80-1000GSM
Max. Scroll Diameter	1800mm(71")max
Max. Paper-Cutting Width	1420mm/1720mm/1920mm
Total Power	80kw/80kw/80kw
Cutting Length Range	450-1650mm/450-1650mm/450-1650mm
Cutting Accuracy	±0.2mm
Max.Speed of Cutting	400cuts/min
Max.Meter of Cutting	350m/min
The Request for Air Compressor	0.8Mpa
Weight	16000kg/17000kg /18000kg
Length × Width × Height	11500×4300×2500mm

Technical Parameters

More related products you want to see

ZNSLX-1450/1750/1950 High Precision Double Rotary Knife Sheeter Cutting Machine (2 Rolls)

350m/min Cutting Speed

80-1000GSM Cutting-Paper Reference Weight

±0.2mm Cutting Accuracy

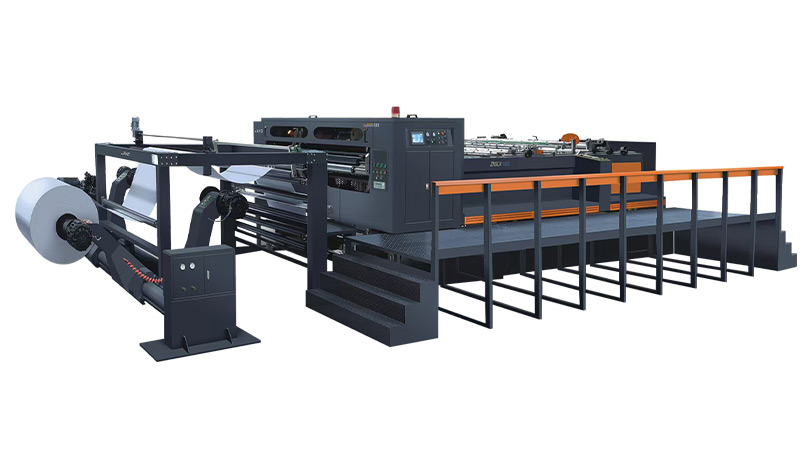

ZNSLX-1450/1750/1950 High Precsion Double Rotary Knife Sheeter Cutting Machine (2 Rolls/ 4 Rolls)
