KFD-500B(AB) Full-Automatic Paper Handbag Buckle Threading Machine

40-50pcs/min Production speed

75-170mm Paper bag hole distance

300-480mm Rope length

Download

DESCRIPTION
PARAMETERS
DETAILS
RELATED MACHINERY
OTHER PRODUCT

Description

Combines buckle installation and rope threading in one workflow for paper handbags. it works with various ropes and allows rope length adjustment based on bag-rope matching. Simplifies production by eliminating separate equipment, ensuring consistent results.

Application

Suitable for various types of ropes such as three-strand rope, cotton rope, and ribbon rope. The hole spacing should be less than the width of the paper bag minus the accordion fold depth. Customization is available based on customer samples.

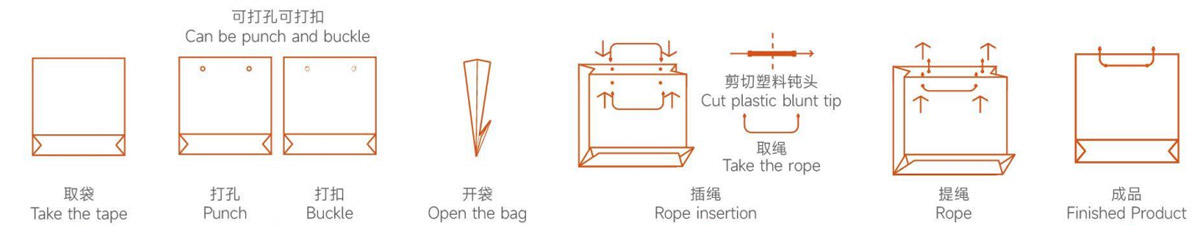

Schematic Diagram of Automatic Rope Threading Machine

Technical Parameters

Model	KFD-500A
Bag surface width	180-450mm
Bag surface height	180-450mm
Paper weight	160-300g
Paper bag hole distance	70-150mm
Rope length	300-480mm
bag pull cord	The rope length can be adjusted to match the bag and rope.
Production speed	40-50 pcs/min
Drilling size	4-6mm (Selectable)

Model	KFD-500B
Bag surface width	180-450mm
Bag surface height	180-450mm
Paper weight	160-300g
Paper bag hole distance	75-170mm
Rope length	300-480mm
bag pull cord	The rope length can be adjusted to match the bag and rope.
Production speed	40-50pcs/min
Machine Size	280013502200MM
Machine Weight	2200KG
Total power	12KW
