KFD-500A-2 Fully Automatic Paper Bag Wrist Insertion Machine

KFD-500A-2 Fully Automatic Paper Bag Wrist Insertion Machine

40-50pcs/min  Production speed

50-220mm  Paper bag hole distance

300-480mm  (Including rope tension) Rope length

Description

Fully automatic threading for paper bags, compatible with horizontal paper bags. It supports multiple rope types and features adjustable rope pull length. The machine operates seamlessly, adapting to different bag specifications, making it a reliable choice for efficient paper bag production.



Application



Suitable for various types of ropes such as three-strand rope, cotton rope, and ribbon rope. The hole spacing should be less than the width of the paper bag minus the accordion fold depth. Customization is available based on customer samples.

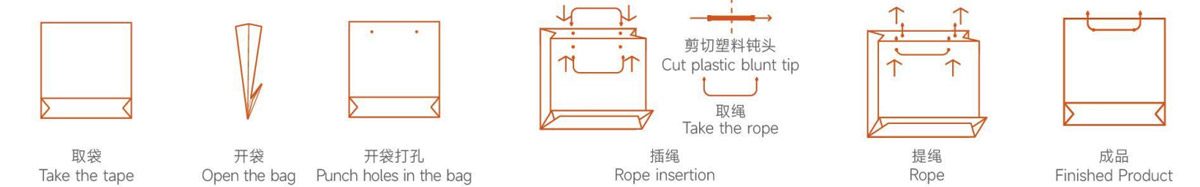

Schematic Diagram of Automatic Rope Threading Machine

Technical Parameters
Model KFD-500A-2
Bag surface width 110-450mm
Bag surface height 150-450mm (Horizontal paper bags, 120mm height, equipment compatible)
Paper weight 128-300 gsm (Paper weight is directly proportional to the height of the paper bag)
Paper bag hole distance 50-220mm
Rope length 300-480mm (Including rope tension)
Bag pull cord The length of the rope can be adjusted according to the matching of the bag and the rope.
Production speed 40-50pcs/min
Machine size 2800*1350*2200MM
Machine weight 2000KG
Total power 12KW
Drill hole diameter 4-6mm Optional (depending on the corresponding mold)
Accordion dimensions >60mm
Technical Parameters
