15-80m/min Laminating Speed
720*820(mm) Max. Paper Size
220*210(mm) Min. Paper Size
15-100m/min Laminating Speed
1030(mm) Max. Roll Width
400(mm) Min. Roll Width

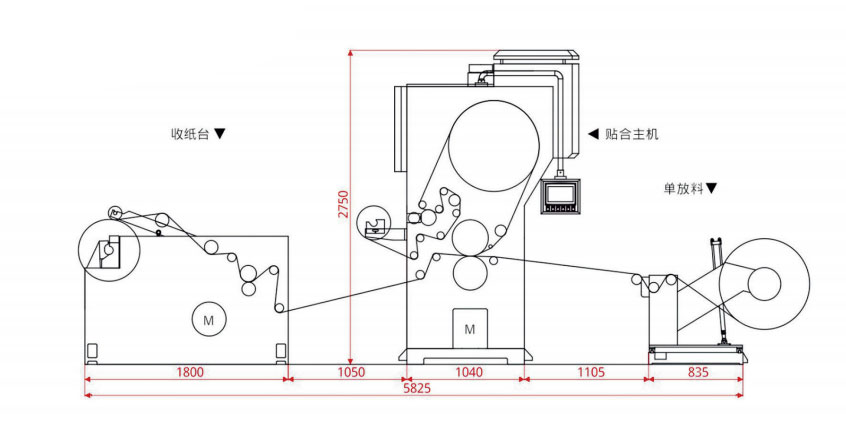

This machine adopts advanced technology at home and abroad. and is a new generation product developed by our R&D team. lt is an ideal equipment for multi-purpose, for the coating process of PET precoat film. BOPp film.BOPp precoat film. BOPp non-adhesive film and laser film.
| Model | ZDJT-1100F |
| Max. roll width | 1030mm |
| Min. roll width | 400mm |
| Max. roll dia | 1500mm |
| Paper GSM | 60-500g/m² |
| Laminating Speed | 15-100m/min |
| Max. roll weight | 1200kg |
| Production power | 20KW |
| Applied power | 37KW |
| Reserve power | 20KW |
| Dimensions (L*W*H) | 7000*2500*2750(mm) |
| Weight | 5800kg |
15-80m/min Laminating Speed
720*820(mm) Max. Paper Size
220*210(mm) Min. Paper Size
20-100m/min Laminating Speed
1300*880(mm) Max. Paper Size
350*280(mm) Min. Paper Size
5-30m/min Laminating Speed
1050(mm) Max. Roll Width
400(mm) Min. Roll Width
1000mm Max. roll width
1500*1500*100(mm) Dimensions (L*W*H)
1.5KW Production power
